Specification

Application:

multiple industries
Material:

See product manual
published:

10 Oct 2026
Lead time:

within 30 days
category:

Pumps & Compressors
price type:

negotiable

description

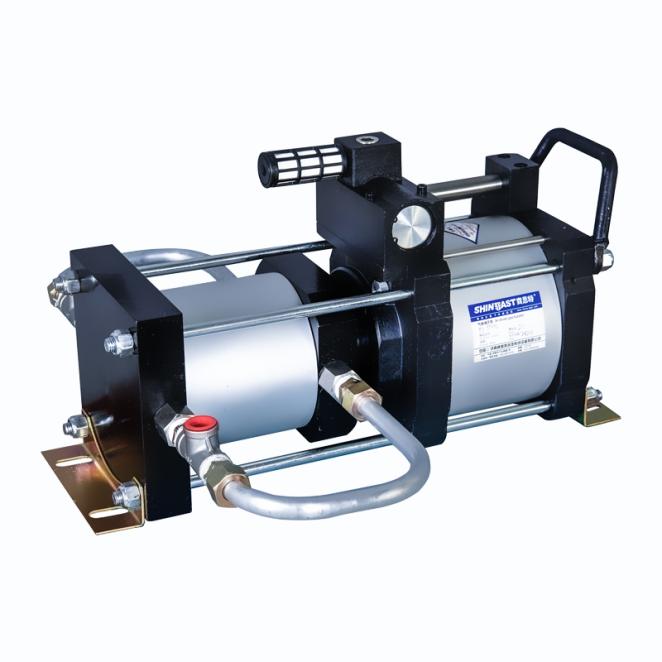

This series of gas booster pumps is designed for laboratory testing and industrial gas boosting applications. The pump operates on a single pneumatically actuated unbalanced gas distribution valve, enabling smooth and automatic reciprocating motion without the need for electricity. Drive components are manufactured from aluminum alloy or stainless steel for durability and corrosion resistance. The maximum drive pressure is 10 bar, though it is recommended to operate at ≤ 8 bar to ensure extended service life. Featuring a 160 mm drive piston diameter and a single-acting design, the pump head incorporates a built-in cooling function to manage discharged air temperature.

Key Features:

Compressed Air Driven: No electricity required — simply connect to a standard air compressor. To extend pump service life, driving air pressure should not exceed 8 bar.
No Lubricator Required: No airline lubricator needed, reducing maintenance complexity and contamination risk.
Hydrocarbon-Free Operation: Complete separation between the air drive section and the gas booster section ensures oil-free, hydrocarbon-free boosted gas.
Wide Model Range: Multiple models available with different pressure ratios to suit various gas boosting requirements.
Built-in Cooling Unit: Each model is equipped with an integrated cooling unit to manage discharge air temperature.
Easy Installation, Operation and Maintenance: Compact and straightforward design allows for quick setup and hassle-free upkeep.
High-Quality Seals: Premium sealing components ensure long service life and reliable performance.
Explosion-Proof Design: Gas-driven operation eliminates heat, flame, and spark risks — safe for hazardous environments.
Automatic Pressure Holding: The pump automatically starts whenever a pressure drop is detected, maintaining constant loop pressure without manual intervention.
Gas-Wetted Materials: All components in contact with the boosted gas are made of aluminum or stainless steel, ensuring gas purity and corrosion resistance.

Applications:

Laboratory gas testing and pressure simulation
Gas pipeline pressure boosting and leak testing
Pneumatic system pressure maintenance
Gas cylinder filling and pressure regulation
Industrial gas processing and packaging
Hazardous environments requiring explosion-proof equipment
Research and development laboratories
Quality control and pressure validation stations

Technical Notes:

Maximum drive pressure: 10 bar (recommended operating pressure: ≤ 8 bar)
Drive piston diameter: 160 mm
Pump type: Single-acting
Cooling: Built-in pump head cooling / integrated cooling unit
Drive medium: Compressed air (connect to standard air compressor)

Contact Us:

For model selection, pressure ratio specifications, customization, or quotation, please contact us through the website inquiry form or official sales channel.
