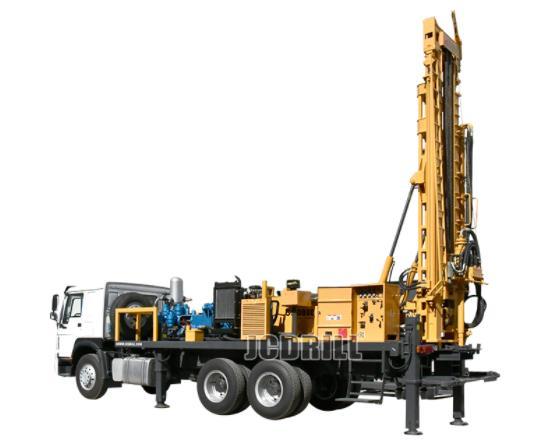

Borehole Truck Water Well Drill Machine with Air Compressor for Sale

The CSD800 is a truck-mounted hydraulic rotary drilling rig designed for water well drilling, borehole construction, and geotechnical applications. Built on a 6×4 or 8×4 special crane chassis, the rig integrates the main drive system, transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, and feed mechanism into a single mobile platform. It supports both air DTH hammer drilling and mud drilling, making it suitable for clay, sand, rock, and weathered formations. Powered by a Yuchai diesel engine and driven by a hydraulic system, the CSD800 delivers stable performance, efficient operation, and strong adaptability for deep-hole drilling projects.

Key Specifications:

Model: CSD800
Chassis Type: 6×4 / 8×4 special crane chassis (Kaima & Foton)
Maximum Drilling Depth: 800 m
Drilling Method: Air DTH hammer drilling and mud drilling
Rig Type: Hydraulic rotary drilling rig with directional circulation
Rotary Head Speed: 0–100 rpm, stepless adjustment
Rotary Torque: 4,000–4,800 Nm
Mud Pump: BW250 mud pump
Power Source: 76 HP Yuchai diesel engine driving a large-displacement high-pressure plunger pump
Main Winch (Optional): 1.5 T pulling force, 40 m rope length
Auxiliary Winch: Provided for tool handling and casing assistance
Control System: Centralized control console
Landing Legs: Four hydraulic landing legs
Drilling Tower: Hydraulic controlled

Technical Features:

Dual drilling capability: air DTH hammer drilling and mud drilling
Hydraulic rotary drive system with directional circulation
Centralized control console for efficient operation and reduced auxiliary time
Stepless rotary speed adjustment from 0 to 100 rpm
Adjustable pulling force suitable for deep-hole drilling
Hydraulic control for landing legs, drilling tower, transfer case, and mud pump clutch
Main winch available for improved efficiency in mud rock and weathered formations
Auxiliary winch supports lifting, casing, and tool handling
Optional generator can be installed for welding or night-time lighting
Hydraulic auxiliary functions for guide extension, boom swing, boom lift, and guide dumping
Mobile truck-mounted design for fast relocation and field deployment

Applications:

Water well drilling
Monitoring boreholes
Geothermal boreholes
Grouting holes for cofferdams, dams, and reinforced foundations
Open-pit mining drilling
Anchor reinforcement projects
Defense and engineering construction projects
Geological exploration and borehole construction
